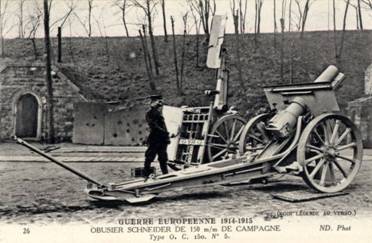

Schneider-Canet
150mm field howitzer M. 1910
|
Bulgarian designation : |
150-мм
с.с. сърбска
гаубица |
||
|
Serbian designation : |
150 мм. пољски
хаубица топ М. 1910 Шнаjдер |
||
|
Schneider designation : |
Obusier de campagne à tir rapide
de 150mm, type O.C.
150 N° 5 |
||
|
Calibre : |
150mm L/12.5 |
||
|
Weight of the barrel : |
972 kg |
||
|
Weight of the breech-block : |
54 kg |
||
|
Weight of the carriage : |
1540 kg |
||
|
Weight in action : |
2518 kg |
||
|
Weight of the gun limber : |
358 kg |
||
|
Weight in marching order : |
2870 kg |
||
|
Weight of the ammo wagon : |
2760 kg |
||
|
Length of the whole howitzer : |
5.360 m |
||
|
Rifling |
length : |
48 |
|
|
twist : |
uniform |
||
|
angle of twist : |
12° |
||
|
Barrel grooves |
number : |
48 |
|
|
width : |
6.817 mm |
||
|
width of lands : |
3 mm |
||
|
depth : |
1.5 mm |
||
|
Height of the line of fire : |
1356 mm |
||
|
Shield |
weight : |
|
|
|
thickness : |
4 mm |
||
|
Cartridge |
weight : |
3.62 kg |
|
|
charges : |
1st charge : 390 g French pyroxylin powder BM 2nd charge : 475 g French pyroxylin powder BM2 3rd charge : 595 g French pyroxylin powder BM2 4th charge : 775 g French pyroxylin powder BM2 5th charge : 1025 g French pyroxylin powder BM2 6th charge : 1370 g French pyroxylin powder BM2 |
||
|
Shell |
weight : |
|
|
|
max. range : |
|
||
|
Shrapnel |
weight : |
charge : 400 g of black powder |
|
|
max. range : |
|
||
|
Muzzle velocity : |
330 m/s (full charge) 278 m/s (5th charge) 239 m/s (4th charge) 207 m/s (3rd charge) 181 m/s (2nd charge) 159 m/s (1st charge) |
||
|
Quadrant angle at max. range : |
45° |
||
|
Angle of descent at max. range : |
52° |
||
|
Height of the line of sight : |
1263 mm |
||
|
Elevation : |
+ 43° / - 3° |
||
|
Traversing angle : |
5° |
||
|
Recoil : |
1180 mm (normal)
/ 1250 mm (maximum) |
||
|
Wheels |
weight : |
130 kg each |
|
|
height : |
|
||
|
track : |
|
||
|
Transport : |
drawn by
six horses |
||
|
Ammunition : |
wagon
limber - 8, wagon body - 16 12
ammunition wagons for every battery |
||
|
Remarks : Quick firing
field howitzer. Serbian Army ordered two four-pieces batteries of these
howitzers in 1910-11 and received them during Balkan war. In 1913, they were allotted to 2nd Serbian Army and were used during the
siege of Odrin. Some of them were captured and used
in the field by the Bulgarian artillery during World War 1, being assigned to
6th and 7th batteries of 2nd heavy artillery
regiment. |
|||
