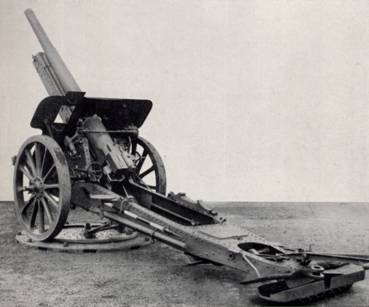

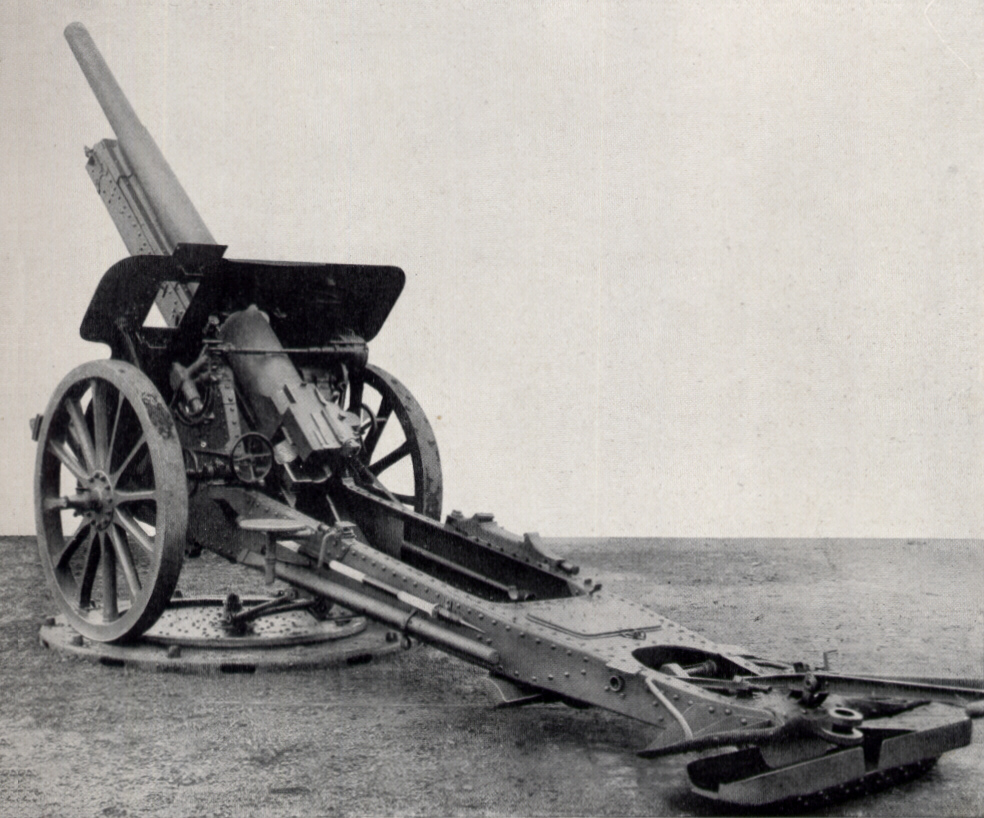

Krupp 105mm long gun M. 1914





0K105mmQF_1914





Bulgarian designation :

10.5-см скорострелно оръдие Д-35 “Круп”

German designation :

10cm K. 14

Calibre :

105.2mm L/35

Weight of the barrel :

1055 kg

Weight of the carriage :

1700 kg

Weight of the empty limber :

457 kg

Weight in action :

2820 kg

Weight in marching order :

3530 kg

Barrel length :

3.675 m

Barrel grooves

number :

32

depth :

1.25 mm

width :

6.8 mm

Rifling

twist :

progressive – 1 turn in 45 to 1 turn in 25 calibres

inclination :

3° 59’ 45” to 7° 4’ 45”

Height of the line of fire :

1350 mm

Cartridge

size :

105 x 505 x 129 R

weight :

3.65 kg

shelled :

24 kg

charge :

1st : 1.55 kg Röhrenpulver 97 + 30 g n.Gew.P. 71

2nd : 2.29 kg Röhrenpulver 97 + 30 g n.Gew.P. 71

Shells



10cm Schr. 96

weight :

17.7 kg / 17.97 kg – 680 lead bullets x 11 g

16.06 kg – 506 steel bullets x 11.3 g

bursting charge : 204 g of black powder

muzzle velocity :

554 m/s

max. range :

11000 m

10cm Gr. 15

weight :

18 kg  - bursting charge : 670 g Grf. 88

muzzle velocity :

583 m/s

max. range :

9200 m (1st charge)

11400 m (2nd charge)

10cm Gr. 15 H.

weight :

18.75 kg - bursting charge : 1.81 kg Fp. 02

18.75 kg - bursting charge : 1.55 kg Grf. 88

muzzle velocity :

590 m/s

max. range :

13100 m (2nd charge)

Elevation :

+ 45° / - 5°

Traversing angle :

6°

Recoil :

1550 m / 950 m

Transport :

drawn by horses in one single load

Remarks :

Quick firing heavy gun. It was an improved version of the 10cm Kanone 04 with longer tube and a shield to protect. It had a modified recoil system, a new breech, a firing platform to allow a rapid direction aiming upon 360°, and two separate elevation aiming systems, one for the flat trajectories, and the other one for the indirect fire. Two batteries were converted for mountain transport, divided in two loads.

At the outbreak of war in August 1914 the Krupp gun went into service as the 10cm Kanone 14, with 128 pieces initially ordered. During the war, 724 of them were delivered by Krupp.  In May 1915 the first 10cm battery was re-equipped with 10cm K 14.

At the end of 1917 6th battery of 3rd heavy artillery regiment received 2 - 10cm K. 14, and at the beginning of August 1918 the German Army left to the Bulgarian artillery at least 12 of these guns from three batteries operating in Macedonia (2., 3., 4 Bt./R.FußAR. 16). The guns were assigned to 1st, 2nd and 3rd battery of 2nd heavy artillery regiment.

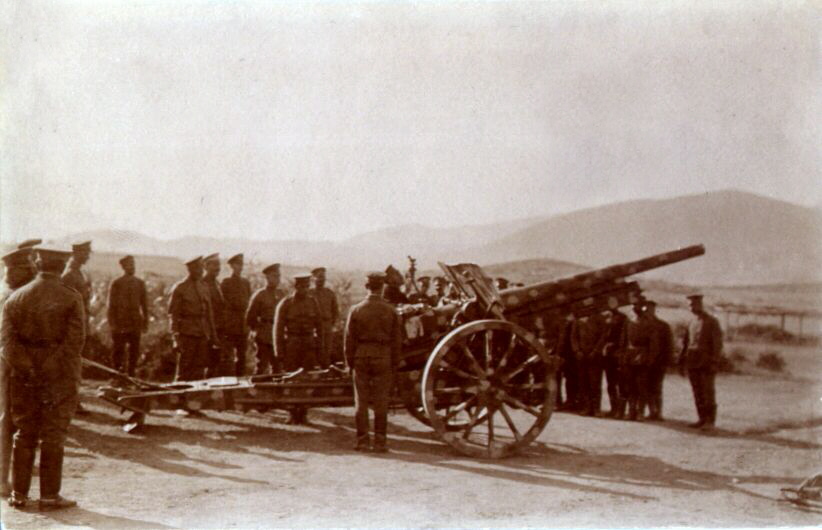

Pictures from Sofia Military Museum
