Krupp 75mm field gun M. 1904









Calibre :

75mm L/30

Romanian designation :

Tunul de camp Krupp, cal. 75 mm, md. 1904

Weight of the barrel :

375 kg

Weight of the breech-block :

28 kg

Weight of the carriage :

695 kg

Weight in action :

1070 kg

Weight of the limber :

700 kg

Weight in marching order :

1770 kg

Weight of wagon body :

1050 kg

Weight of ammunition wagon :

1750 kg

Barrel lenght :

2250 mm

Lenght of the rifling :

1741 mm

Barrel grooves

number :

28

depth :

0.75 mm

width :

5.92 mm

Thickness of gun shield :

6 mm

Height of line of fire :

990 mm

Cartridge

size :

75 x 280 x 90 R

weight :

8.5 kg

charge :

0.442 kg Rottweil smokeless powder

Shell

weight :

6.5 kg - charge: 0.14 kg Picric acid

fuze :

percussion - weight : 340 g

max. range :

6400 m (afterwards increased to 8000 m)

Sharpnel

weight :

6.5 kg - charge : 75 g of black powder

295 bullets x 11 g

fuze :

time and percussion - weight : 390 g

max. range :

5500 m (afterwards increased to 6000 m)

H.E.Sharpnel¹

weight :

6.5 kg - charge : 0.22 kg Trotyl

285 bullets x 9 g

fuze :

Ehrhardt Doppel Zünder C/1905

max. range :

5800 m

Muzzle velocity :

500 m/s

Elevation :

+ 16° / - 8°

Traversing angle :

Recoil :

1.37 m

Height of wheels :

1.30 m

Track :

1.48 m

Transport :

drawn by six horses

Ammunition :

gun limber - 24 shells, wagon limber - 24 shells, wagon body - 64 shells

12 ammunition wagons for every battery

Remarks :

Quick firing field gun, with recoil system with hydraulic buffer and springs, single-motion wedge breech mechanism, traverse on pivot. The carriage had no axletree seats, since the limber could carry three gunners. It was equipped with the Ghenea” pedestal sight, used for direct and indirect laying. It was not fitted for an independent line of sight. An observation ladder weighting 25 kg was carried on one of the ammunition wagons. In 1912 the Brisanzschrapnell Ehrhardt (Rheinmetall) was introduced.

Romania bought 360 guns M. 1904 (90 batteries) and 240 guns M. 1907/12 (60 batteries). There are only little differences between the two models of the gun.

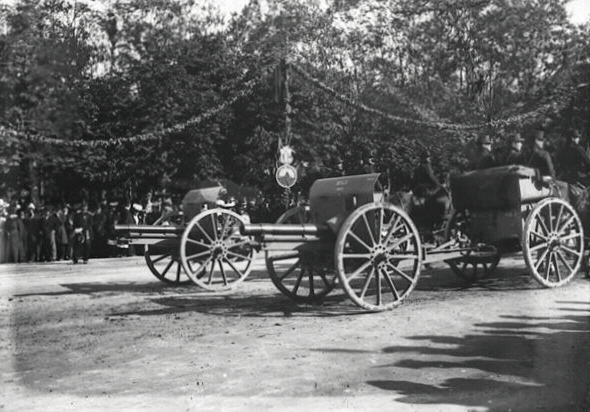

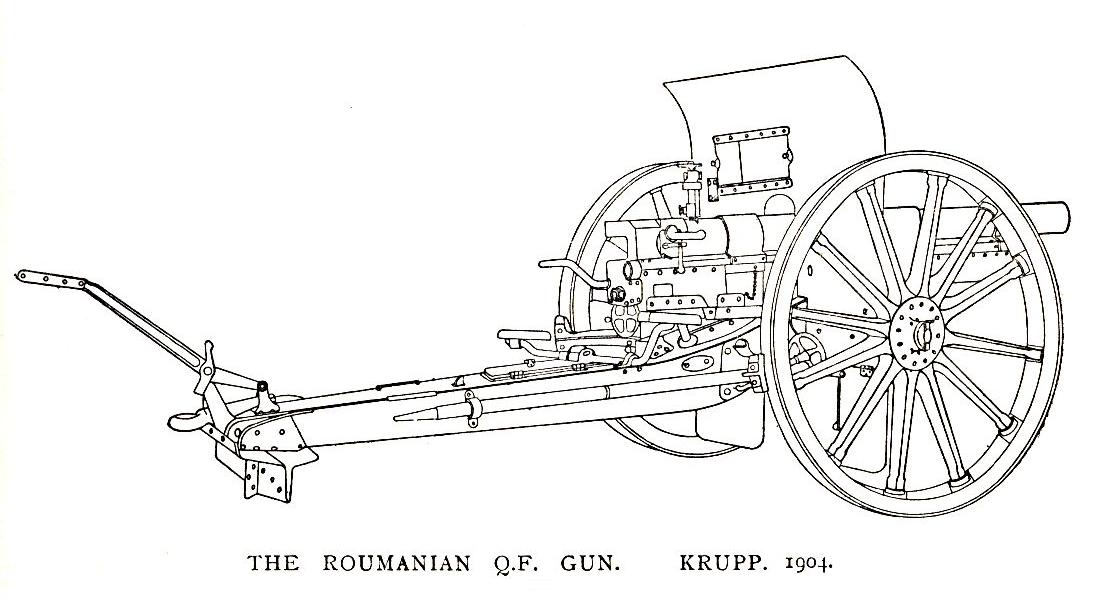

Rumenian0K75mmQF_4

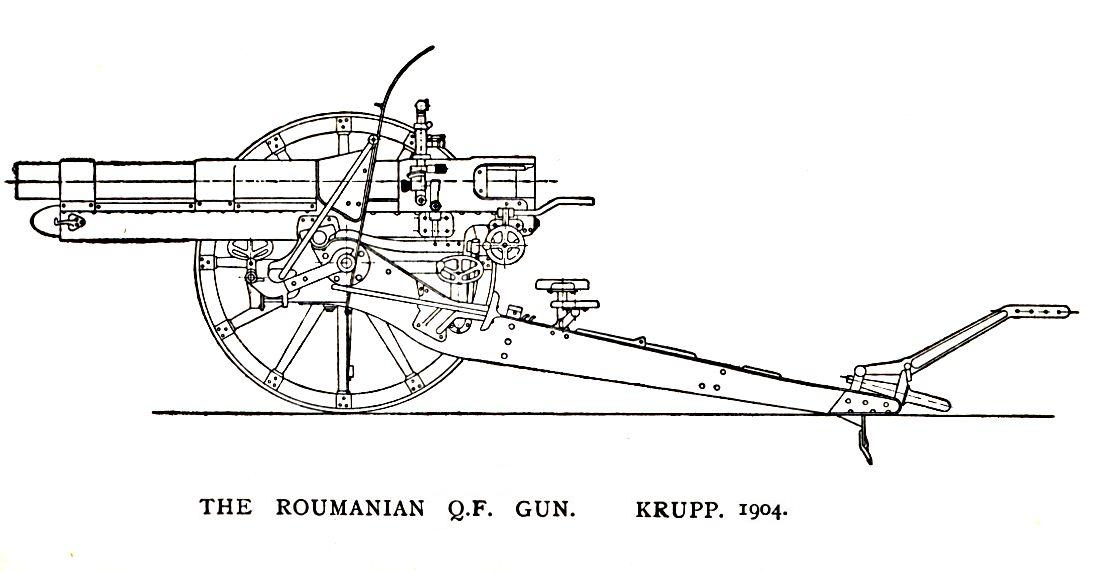

Rumenian0K75mmQF_3





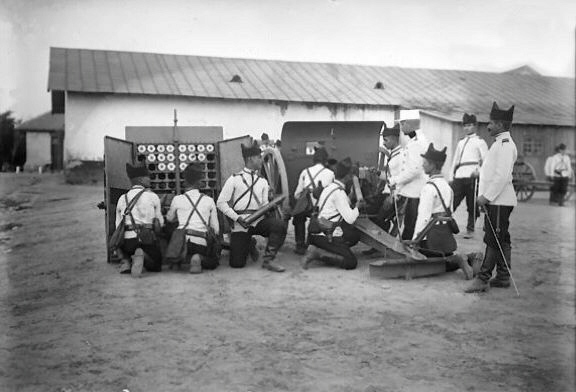

Rumenian0K75mmQF_1

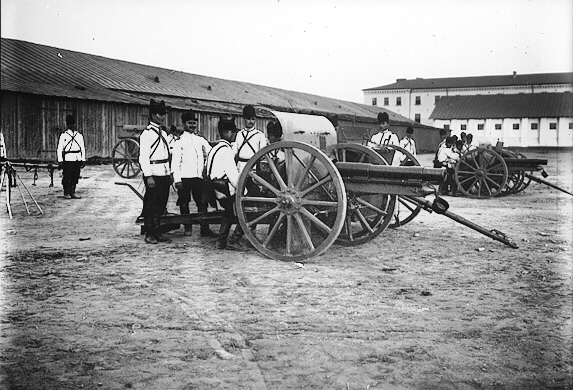

Rumenian0K75mmQF_2
